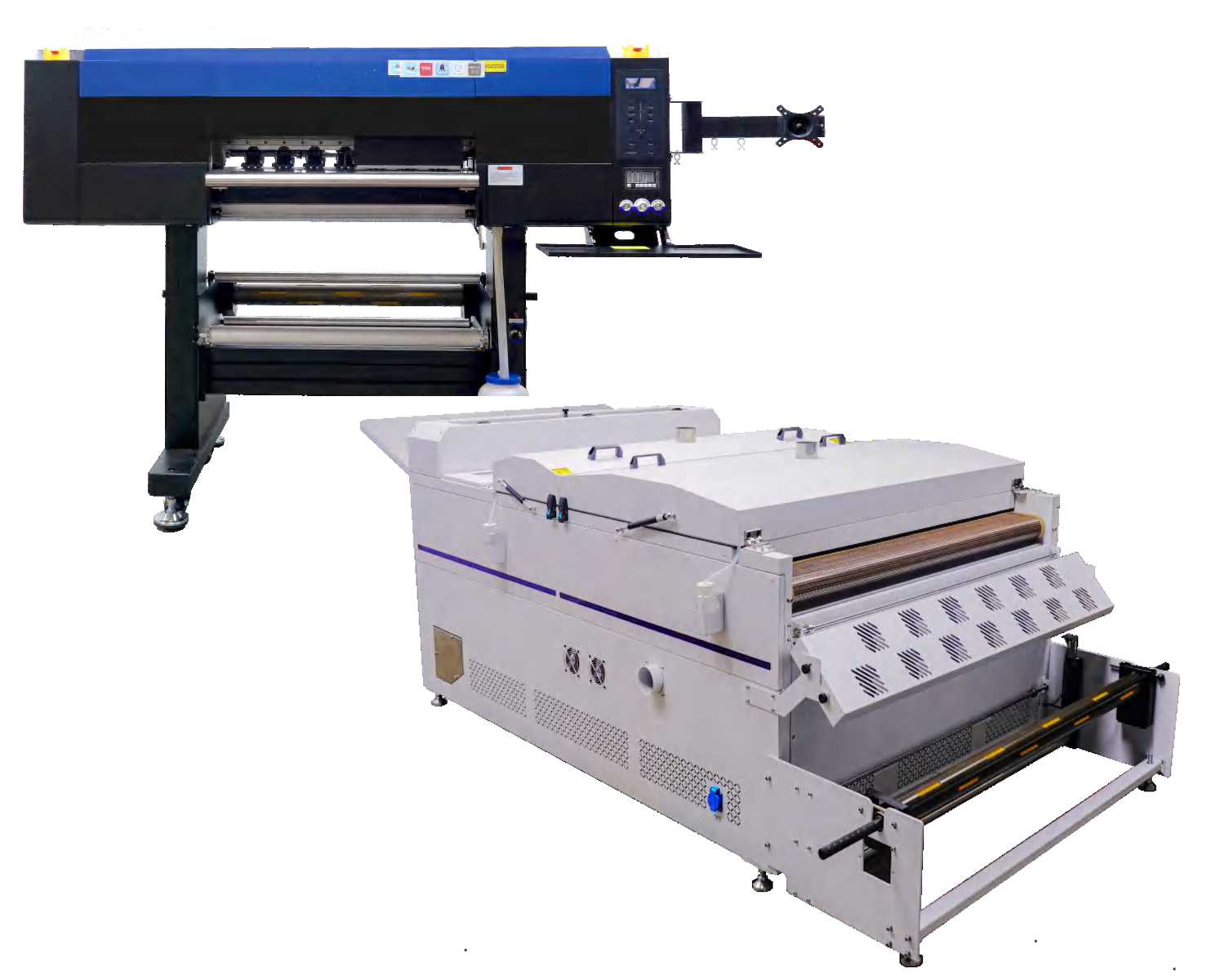

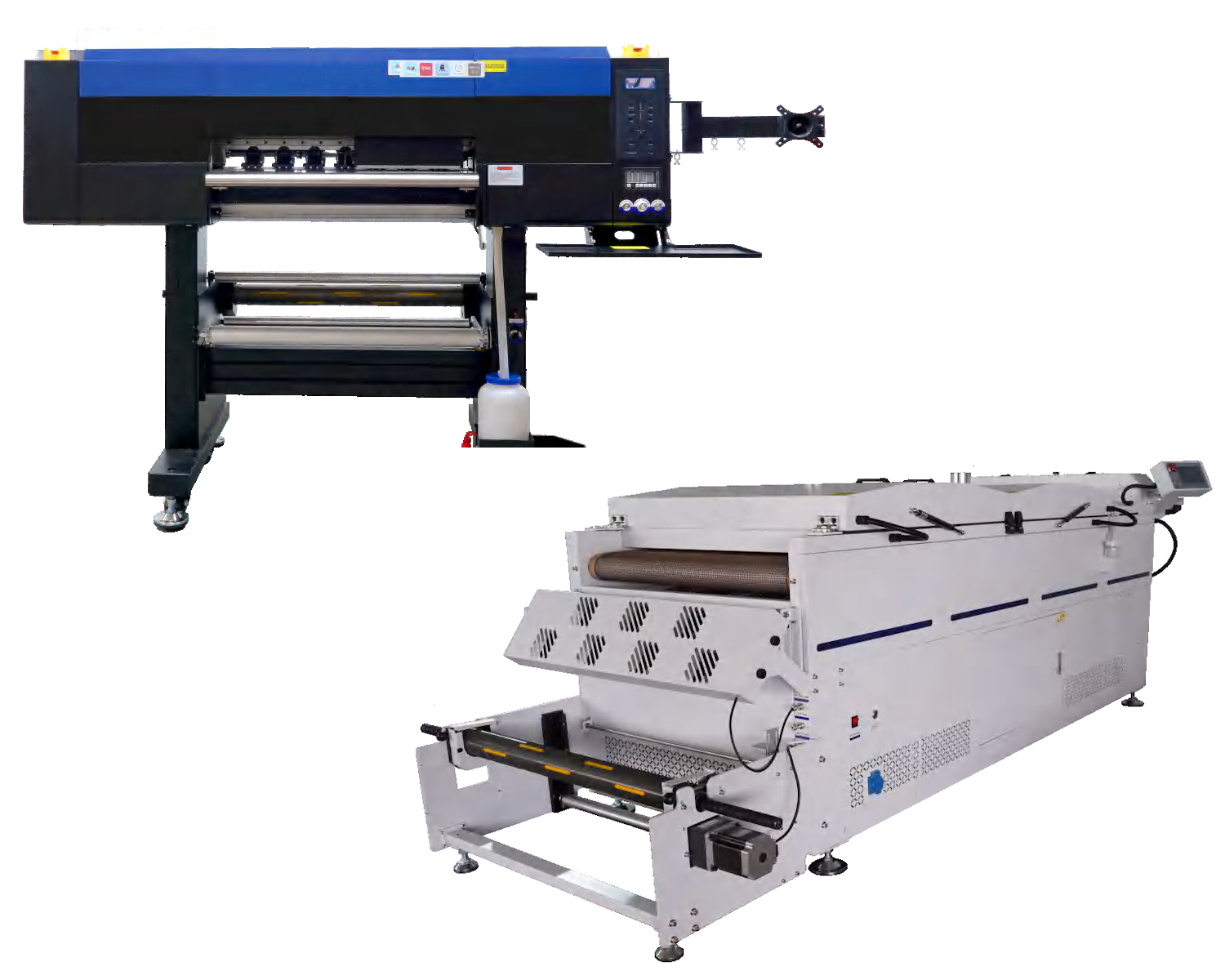

DTF printer and powder shaker system TY300/DF7300
Technical Parameters:
|
Printer Model |
TY300 DTF PRINTER |
Media transfer |
Three-level adjustable pinch roller |
|
Print Head |
Epson F1080 |
Work environment |
Temperature:18-30℃ Humidity:40-60% |
|
Print width |
300mm |
Input power supply |
AC 220V 4.5A/ 110V 9A |
|
ink type |
Paint ink |
Power |
1000W |
|
ink supply method |
Siphon positive pressure ink supply |
Equipment weight |
NW95Kg / GW120kg |
|
Ink color |
CMYK+W |
Machine dimensions |
1100 x640x1020mm |
|
Print Interface |
high-speed Gigabit network cable transmission |
Package size |
1440 x720x660mm |
|

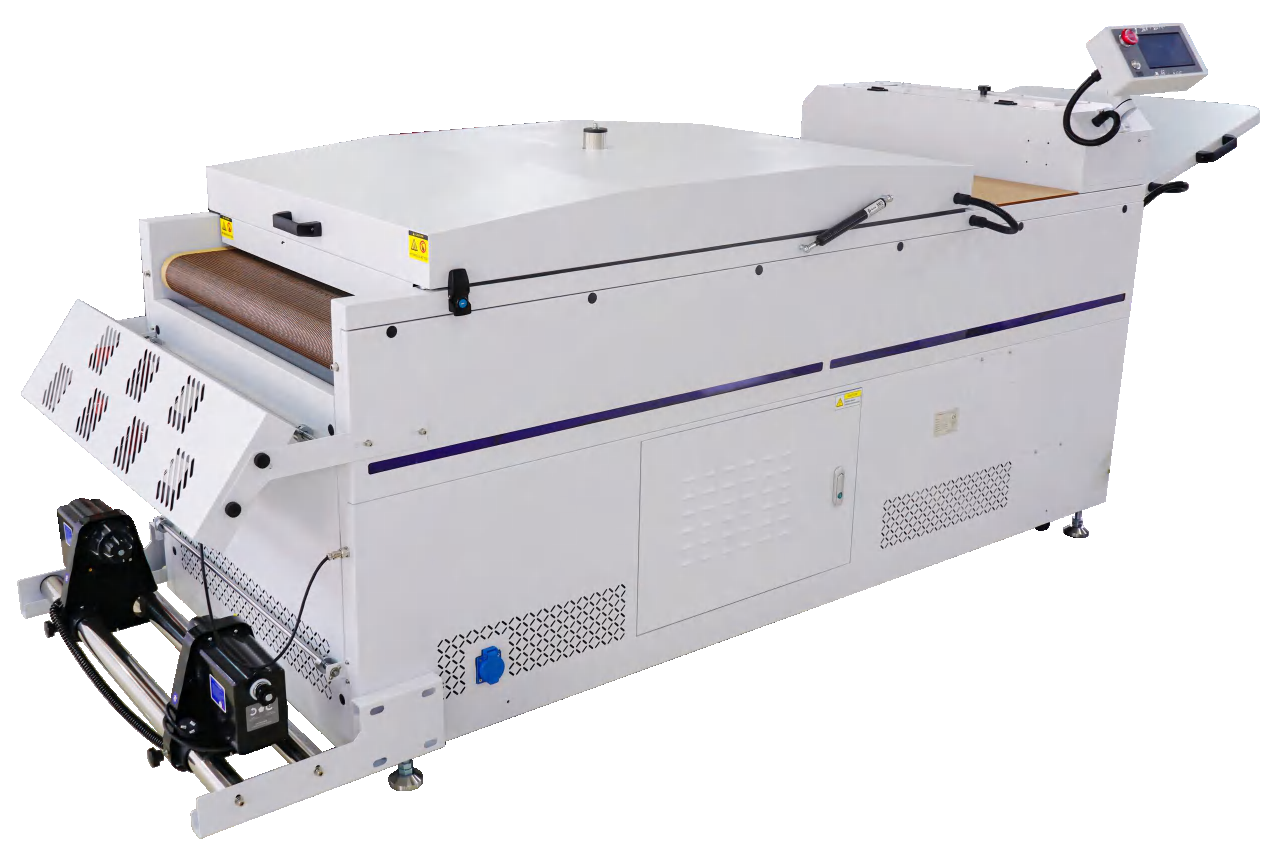

Printer Model |
DF300 shaking powder machine |
Input power supply |
220V 7A /110V 14A |
|
Drying method |
Lamp heating |
Work environment |
Temperature:18-30℃ Humidity:40-60% |
|
Heating width |
300mm |
Equipment weight |
Net weight 85Kg/ Gross weight 100Kg |
|
Heating temperature |
Recommended platform heating 75°C/dry110 °C |
Machine dimensions |
1620 x565x820mm |
|
Power |
1500W |
Package size |
1300 x645x1010mm |
Epson F1080 Two head
