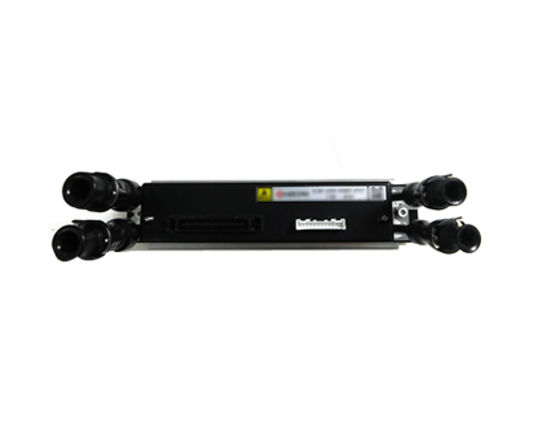

Kyocera Inkjet Printhead KJ4A-0300
Description
This original Kyocera KJ4A-0300 printhead is designed for high speed single-pass applications with printers using aqueous ink, multi-pass using UV inks. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swathe. We recommend to change the head cables when installing a new printhead.
Specifications
- Ink Type: UV ink
- Dimensions: 200 × 36 × 61.4mm
- Dry Weight: 540g
- Total Nozzles: 2.656 (2x 1328)
- Standard Resolution: 300 x 300dpi
- Print Width: 112.35mm
- Max. Drive Frequency: 30kHz
- Drop Volume: 4, 6, 10 and 14pl
- Max. Sprint Speed: 158m/min
- Typical ink viscosity: 7.0-7.5 mPa
- This printhead carries a manufacturer warranty.
- Ink Type: UV ink
- Dimensions: 200 × 36 × 61.4mm
- Dry Weight: 540g
- Total Nozzles: 2.656 (2x 1328)
- Standard Resolution: 300 x 300dpi
- Print Width: 112.35mm
- Max. Drive Frequency: 30kHz
- Drop Volume: 4, 6, 10 and 14pl
- Max. Sprint Speed: 158m/min
- Typical ink viscosity: 7.0-7.5 mPa
- This printhead carries a manufacturer warranty.
Printer compatibility
This original Kyocera KJ4A-0300 printhead is designed for high speed single-pass applications with printers using aqueous ink, multi-pass using UV inks.
