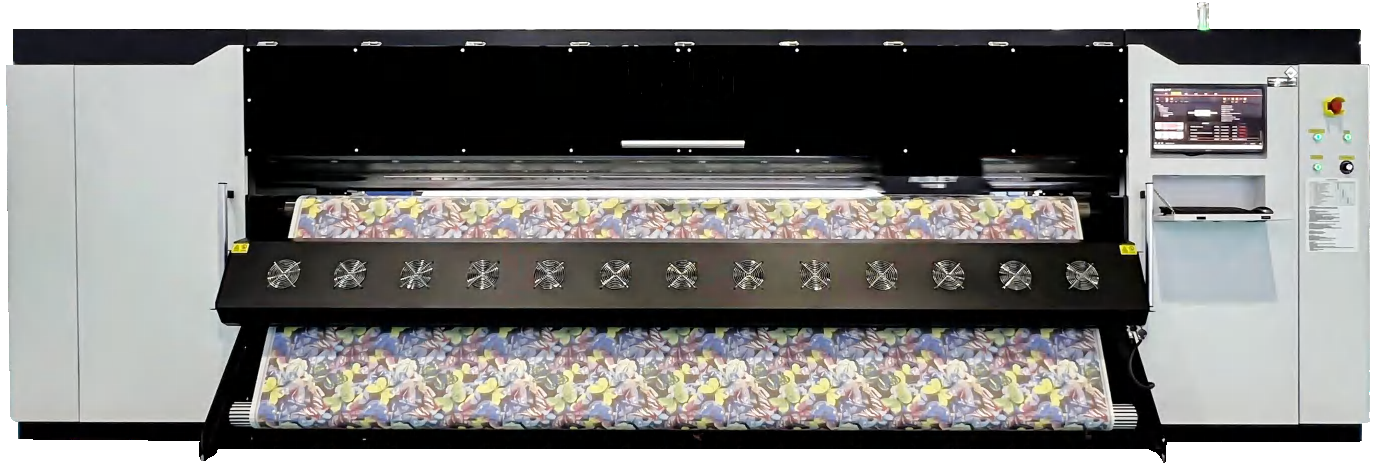

Wide format digital printing sublimaiton paper machine F2208
Epson i3200-A1 eight head
Print Speed: 1PASS 350㎡/h 2PASS 190㎡/h
Product Features:
1. heavy-duty all in one machine
2. Adjustable pinch roller
3. Silent guide rail
4. air shaft feed up and take up system
5. High precision platform
Technical Parameters:
|
Printer Model |
F2208 |
Interface |
USB3.0 |
|
Print Width |
2200mm |
Rip Software |
RIIN, MainTop |
|
Print Head |
Epson i3200-A1 eight head |
Working Voltage |
AC220V |
|
Print Speed |
1PASS 350㎡/h |
Working environment |
Temperature:15-30℃ Humidity:40-60% |
|
Ink Type |
Environmentally friendly high-concentration thermal transfer dispersion ink |
Host size |
3844 x1360x1740mm |
|
Material handling |
Air shaft feed up and take up system |
Package size |
4000 x1520x1972mm |
|
Roll specifications |
2.2m width, 250mm diameter, weighing approximately 110KG |
Power |
Rated power 2.5KW, drying 220V/8KW |
|
Ink bucket configuration |
4L * 4pcs |
Equipment weight |
1000KG |
Best-selling classic,stable and high-precision
